• Polypropylene housings | FILTRO BIG

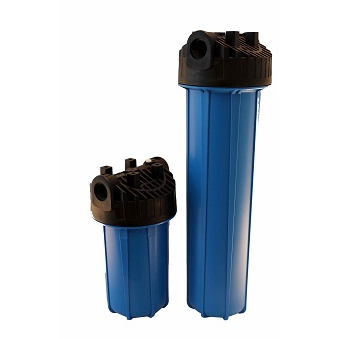

FILTRO BIG
Polypropylene housings

Create specific product details (PDF)

More

Product type Polypropylene housings
Connection IN/OUT 1" BSP F
Max working pressure: 8 bar
Test pressure 12 bar
Max working temperature 50 °C
N° cartridges: 1
Cartridges endcaps: B
Min cartridge internal diameter: 26
Max cartridge external diameter: 120
Cartridges height 9" 3/4 - 20"
Applications Water, Sea water, Process water, Evaporative cooling towers, Heat exchangers, Irrigation, Aquaculture, Protection of spray nozzles, Prefiltration for ultrafiltration (UF) plants, Prefiltration for reverse osmosis (RO) plants
Capacity empty 2 bar: 106 l/min

Description

Everblue designes and manufactures a complete line of containers single and multi cartridge that contain all the cartridges of Everblue's range of products. Different materials (stainless steel AISI 316, fiberglass, different plastic materials such as polypropilene, polyamide and pvc) and different methods we use during production process, make Everblue's containers especially suitable for water treatment plants for drinking and industrial waters, for the food, farmaceutical, chemical and petrolchemical sectors. The perfect combination of containers and filtering cartridges produces allow us to satisfy any flow rate, efficiency and contaminant removal.

Download

DATA SHEET

FILTRO BIG - Polypropylene housings

DRAWING

FILTRO BIG - Polypropylene housings

Contacts

REQUEST INFO
I have read the information on data processing (GDPR n.679 / 2016) (leggi/read)
Accept I do not accept

Cartridges suitable for this housing

Product picture Model Type Filtration material Efficiency Hot sanitizing Heights Filtration degrees (µm) Available Endcaps types Product sheet
N85BN85BPolypropylene melt blown cartridgeMelt Blown85.00 %19" 3/4 - 20"1-10 µm; 5-20 µm; 20-50 µm; 50-90 µmBDownload
FABFABWound polypropylene cartridgeWound PP80.00 %19" 3/4 - 20"1 µm; 5 µm; 10 µm; 20 µm; 50 µm; 100 µmBDownload
PP85BPP85BPleated polypropylene cartridgePleated polypropylene85.00 %19" 3/4 - 20"1 µm; 5 µm; 10 µm; 20 µm; 50 µmBDownload
RLA75BRLA75BWashable nylon net cartridgeWashable net75.00 %19" 3/4 - 20"80 µmBDownload
