Lead Time
Delivery: four weeks after receipt of order

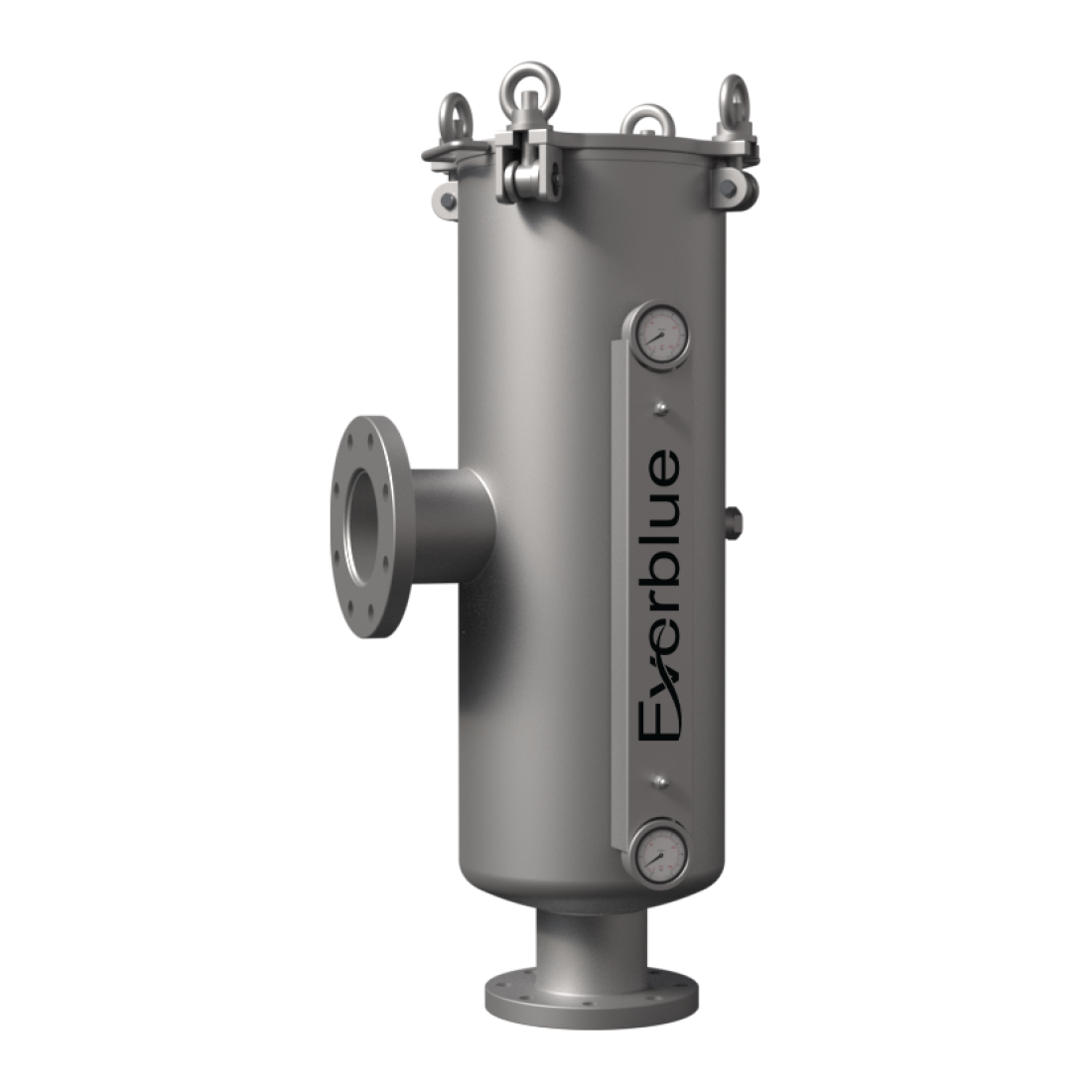

BASKETBLACK FBB-S
Steel AISI 316L housings with strainer

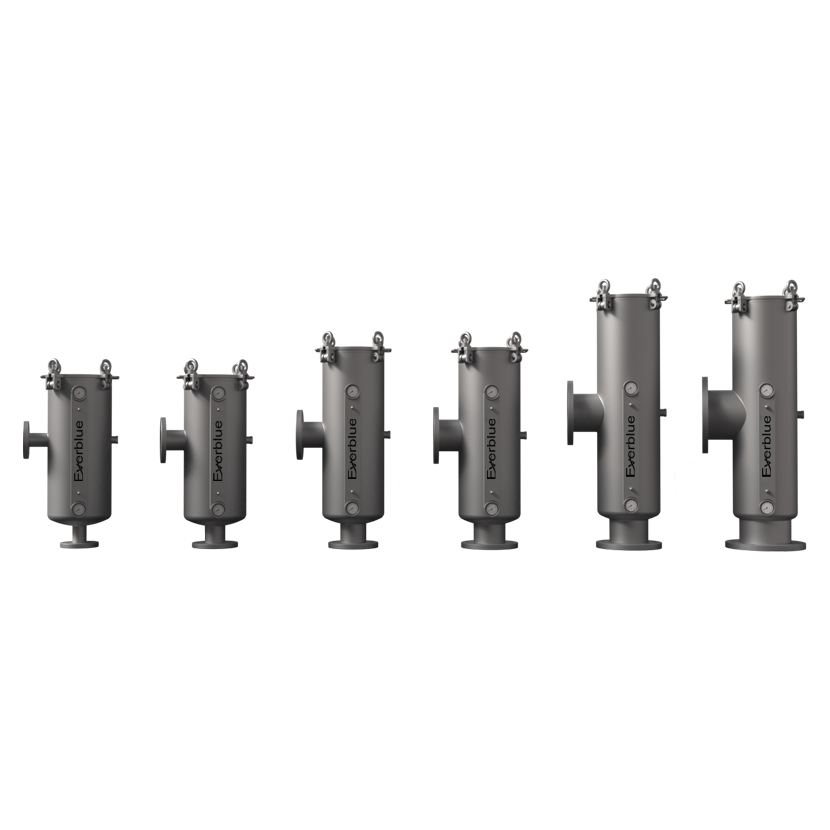

The strainer basket filter BasketBlack FBB-S is made of AISI 316L stainless steel (both the body and the internal filter basket are manufactured in AISI 316L). Filtration grades from 25 microns to 800 microns, available with flanged connections DN50, DN80, DN100, DN125, DN150 and DN200.
More
| Product type | Steel AISI 316L housings with strainer |
| Material | AISI 316 L |
| Heights - In/Out: | DN 100 FLANGE EN1092 - DN 125 FLANGE EN1092 - DN 150 FLANGE EN1092 - DN 200 FLANGE EN1092 - DN 50 FLANGE EN1092 - DN 80 FLANGE EN1092 |
| Micron | 50 µm - 80 µm - 125 µm - 200 µm - 300 µm - 500 µm - 800 µm - 1000 µm - 2000 µm - 3000 µm |
| Max working pressure | 8 bar |
| Test pressure | 12 bar |
| Max working temperature | 50 °C |
| Applications | Prefiltration for water treatment plants, Process water, Evaporative cooling towers, Heat exchangers, Irrigation, Aquaculture, Protection of spray nozzles, Water |
Description
The strainer basket filter BasketBlack FBB-S is made of AISI 316L stainless steel (both the body and the internal filter basket are manufactured in AISI 316L). Filtration grades from 25 microns to 800 microns, available with flanged connections DN50, DN80, DN100, DN125, DN150 and DN200.
Everblue's industrial basket filters are ideal for pre-treatment of self-cleaning filters, for pump protection and for filtration after sand filters or resin plants. Strainers are used to remove from the water leaves, pieces of leaves, branches, small stones, sand, rust, parasites, insects, large particles and they guarantee a removal of 85% of all particles larger than 50 microns (0.05 mm). Basket filters are available in different materials such as stainless steel AISI 316, fiberglass and plastic materials, polypropilene and polymide.
Download
Lead Time
Delivery: four weeks after receipt of order

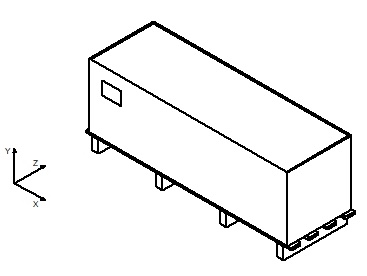

Packaging
| Packaging | Pallet |
| Width (x) | 155 cm |
| Heigth (y) | 62 cm |
| Depth (z) | 50 cm |
