• Fiberglass housings | FILTRO FIB-FON-04

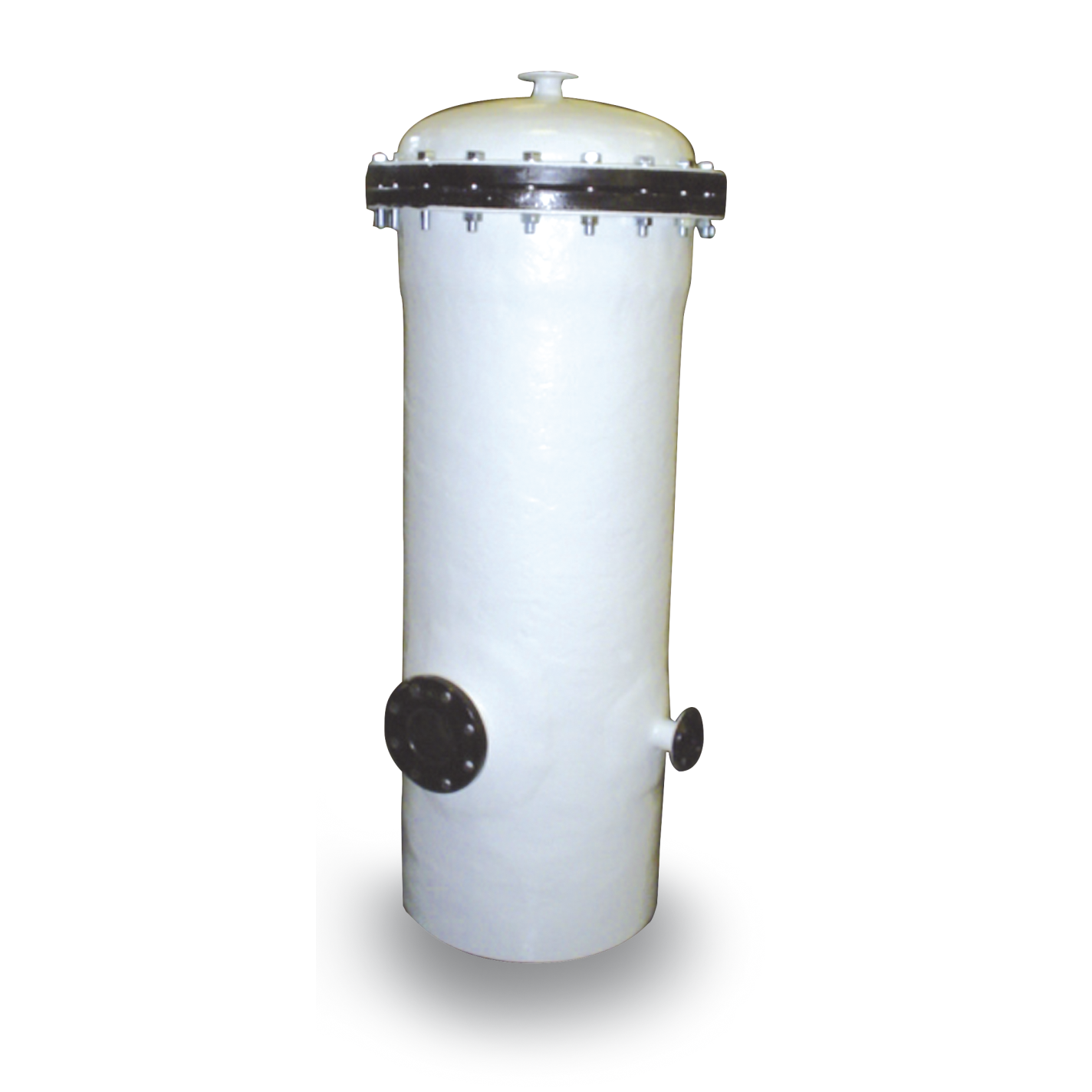

FILTRO FIB-FON-04
Fiberglass housings

More

Product type Fiberglass housings
Connection IN/OUT DN 150 FLANGE L
Max working pressure: 6 bar
Test pressure 9 bar
Max working temperature 50 °C
N° cartridges: 4
Cartridges endcaps: FON
Min cartridge internal diameter: 76
Max cartridge external diameter: 147.5
Cartridges height 40"
Applications Water, Sea water, Process water, Evaporative cooling towers, Heat exchangers, Irrigation, Aquaculture, Protection of spray nozzles, Prefiltration for ultrafiltration (UF) plants, Prefiltration for reverse osmosis (RO) plants
Capacity empty 2 bar: 3333 l/min

Description

Everblue designes and manufactures a complete line of containers single and multi cartridge that contain all the cartridges of Everblue's range of products. Different materials (stainless steel AISI 316, fiberglass, different plastic materials such as polypropilene, polyamide and pvc) and different methods we use during production process, make Everblue's containers especially suitable for water treatment plants for drinking and industrial waters, for the food, farmaceutical, chemical and petrolchemical sectors. The perfect combination of containers and filtering cartridges produces allow us to satisfy any flow rate, efficiency and contaminant removal.

Download

DATA SHEET

FILTRO FIB-FON-04 - Fiberglass housings

DRAWING

FILTRO FIB-FON-04 - Fiberglass housings

Contacts

REQUEST INFO
I have read the information on data processing (GDPR n.679 / 2016) (leggi/read)
Accept I do not accept

Cartridges suitable for this housing

Product picture Model Type Filtration material Efficiency Hot sanitizing Heights Filtration degrees (µm) Available Endcaps types Product sheet
N95FONN95FONPolypropylene melt blown cartridgeMelt Blown95.00 %123" - 40"1-10 µm; 5-20 µm; 20-50 µm; 50-90 µmFONDownload
PP95FON5LPP95FON5LPleated polypropylene cartridgePleated polypropylene95.00 %123" - 40"1 µm; 5 µm; 10 µm; 20 µm; 50 µmFONDownload
TPL95FONFTPL95FONFPleated polyester net cartridgePleated polyester sleeve95.00 %123" - 40"20 µm; 50 µmFONDownload
